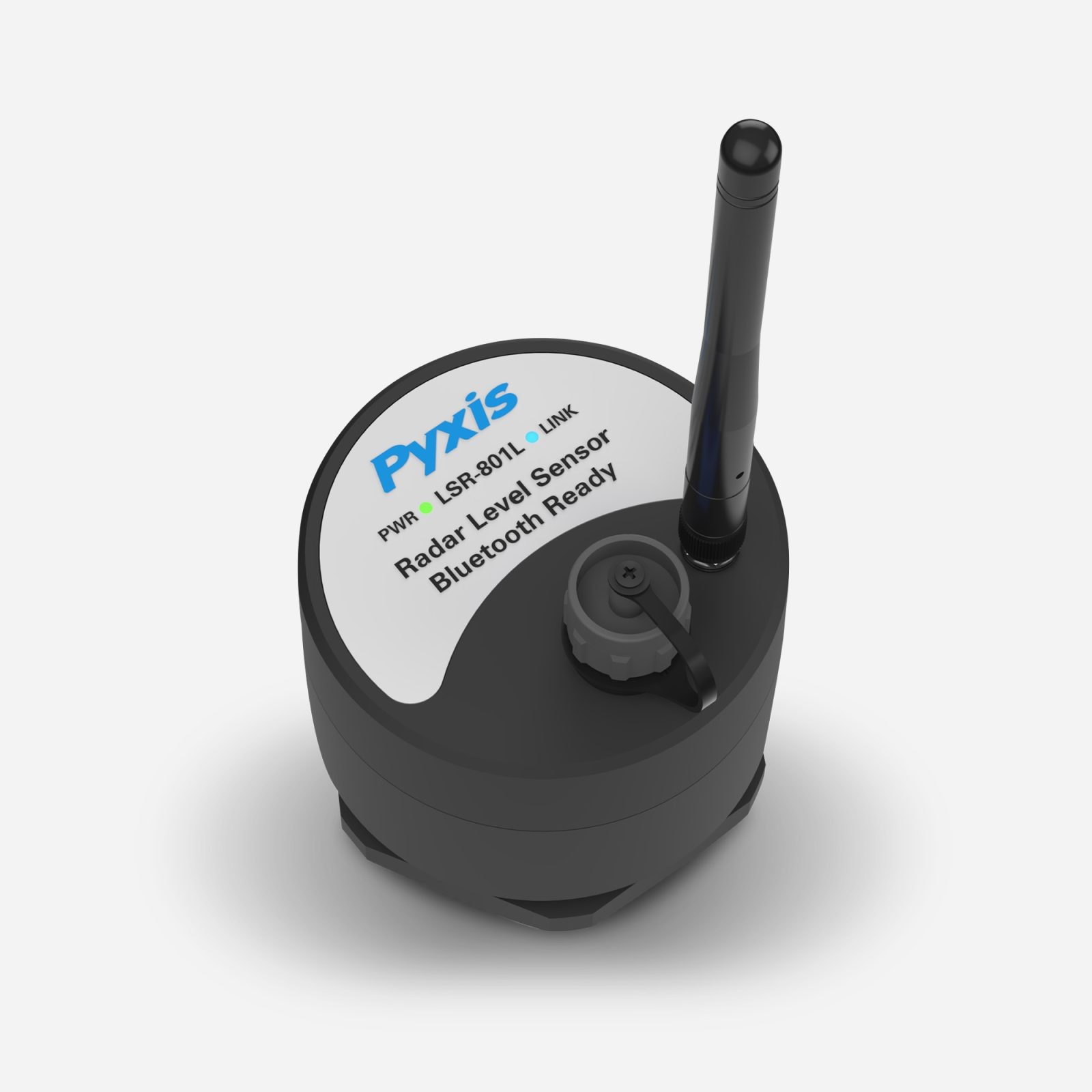

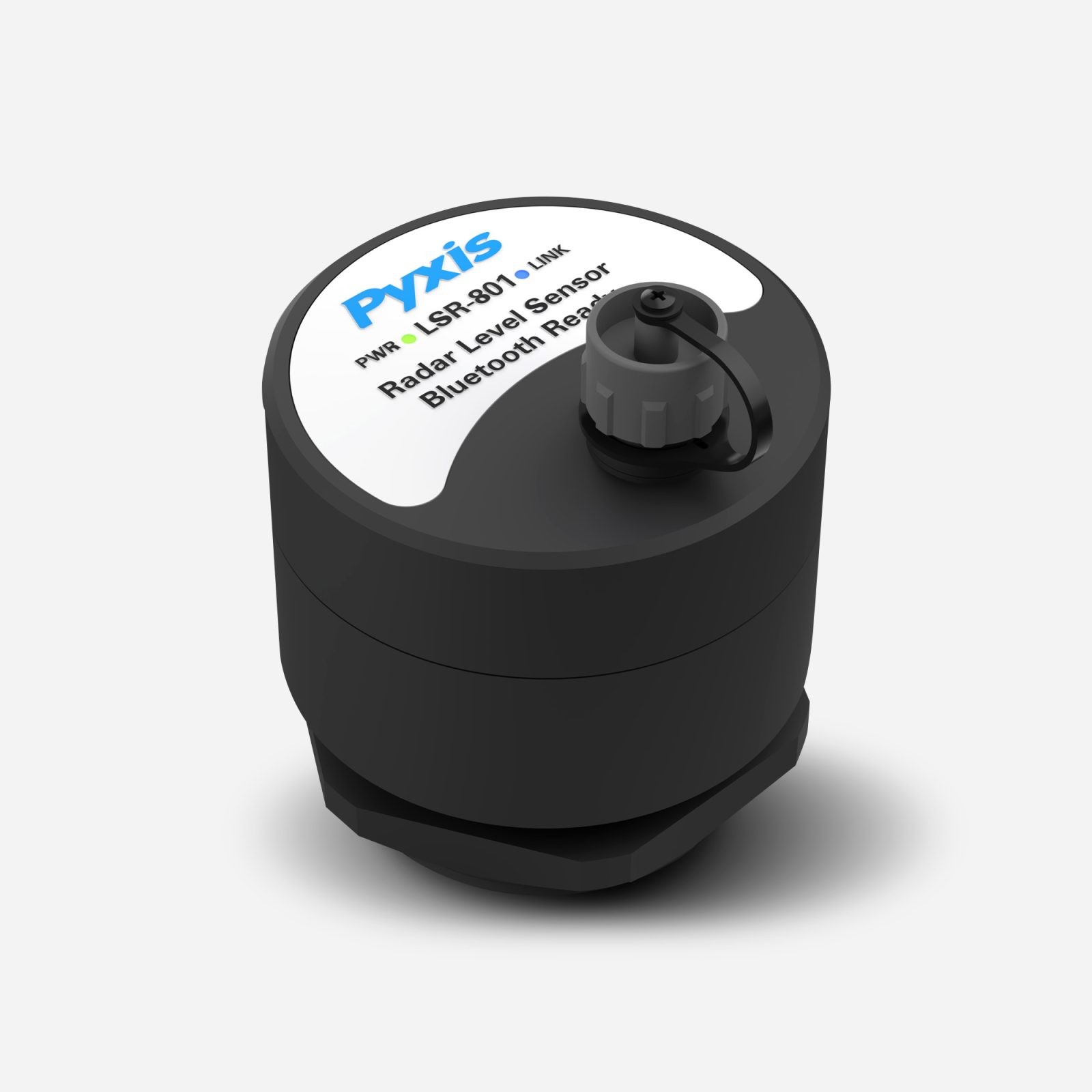

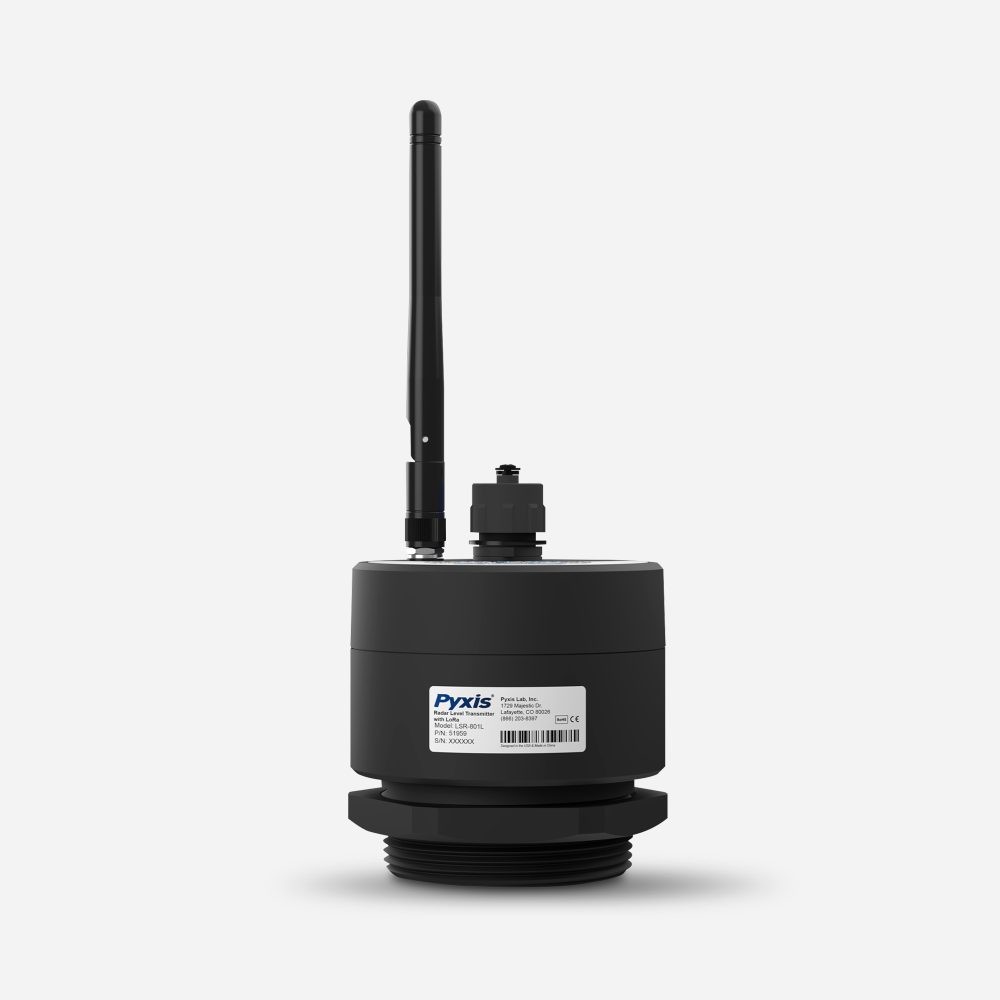

The Pyxis LSR-801 Series sensors are W-band FMCW continuous frequency modulation radar level transmitters. They provide continuous level measurement up to 591 inches (49.2 ft. or 15 m) with 4-20 mA output as well as RS485, BlueTooth 5.0®. The LSR-801L is also equipped with LoRa (Long Range Radio) digital output for long-distance wireless level sensor data access.

The LSR-801 Series can be wirelessly configured via the Pyxis uPyxis® app for Mobile or Desktop devices enabling rapid integration and deployment in the field. The sensors should be powered by a 24 VDC external power supply and are ideal for use with commonly used OEM controllers, PLC or DCS systems. This non-contact liquid level sensor platform is well suited for corrosive liquids and can be used for industrial, municipal and process liquid storage as well as chemical feed applications.

Features

• Radar Liquid Level Measurement up to 15 Meters (+2mm)
• Embedded Transmitters 4-20mA and RS-485 Outputs
• Bluetooth® Version 5.0 for Rapid-Wireless uPyxis Configuration
• LoRa (Long Range Radio) Implemented LSR-801L
• 24VDC Powered with Smart Switch Capability
• PVDF Transducer / 6P Polycarbonate Enclosure
• 10-ft Waterproof 7-Pin Quick Adapter/Flying Lead Cable
• Extension Cables Availableix.Automatic Temperature / Electromagnetic Noise Compensation
