LT-630 Series Self-Wiping Turbidity Sensors

Configurations

Available analyzer or sensor options

Range: LT-631 (0–500NTU)

$5,608.00

53249

Self-Wiping, Submersible or Inline Installation Turbidity Sensor | 0.00–500.00NTU Range

Range: LT-632 (0–1,000NTU)

$5,608.00

53250

Self-Wiping, Submersible or Inline Installation Turbidity Sensor | 0.00–1,000.00NTU Range

Range: LT-633 (0–4,000NTU)

$5,608.00

10002

Self-Wiping, Submersible or Inline Installation Turbidity Sensor | 0.00–4,000.00NTU Range

Overview

What this product is built to monitor

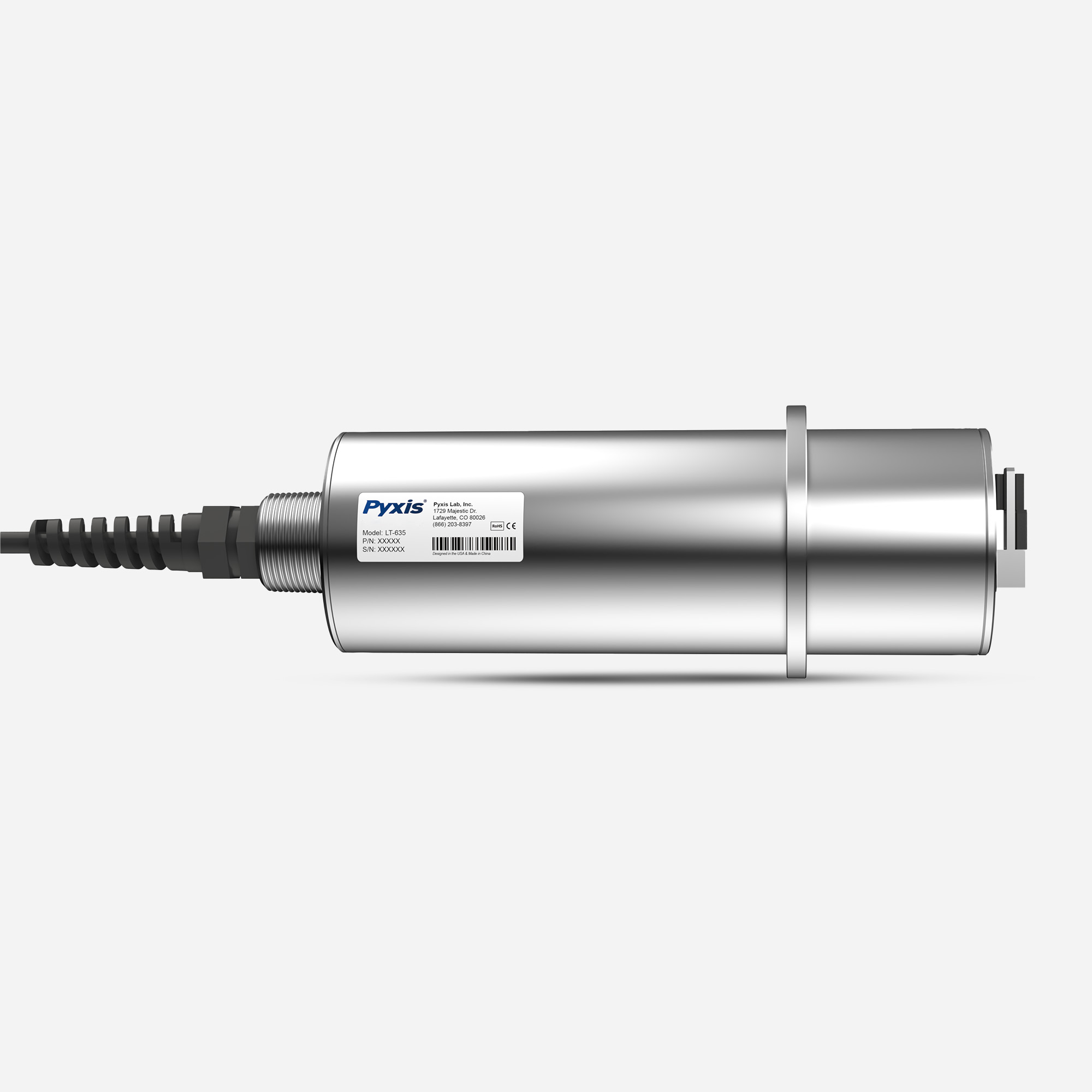

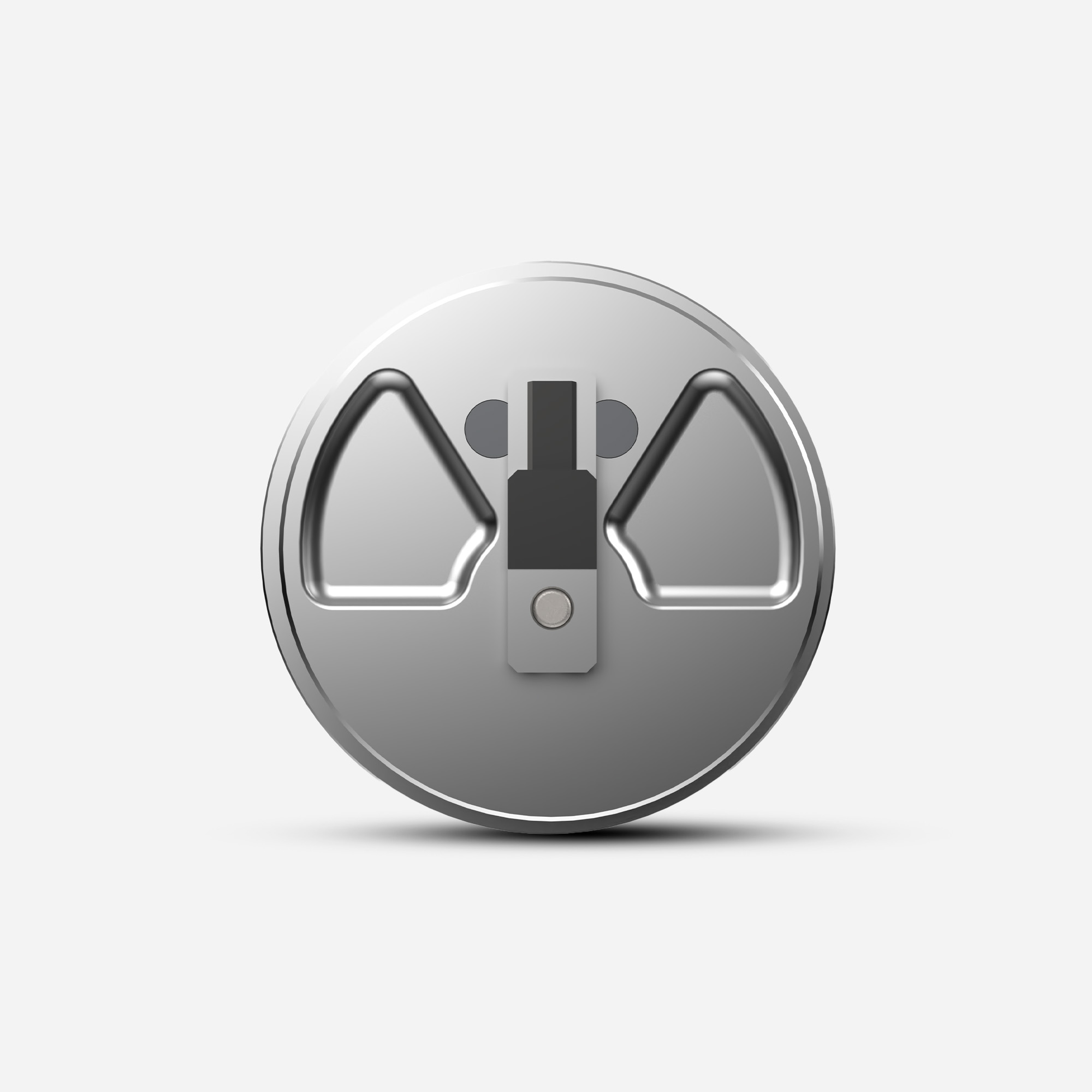

The LT-63X Series sensor platform (including the LT-631, LT-632 and LT-633) are submersible, waterproof, self-cleaning sensors utilize dual infrared detection technology to measure turbidity in the ranges of 0 to 4000 NTU. The sensor automatically compensates for disturbances caused by flow fluctuations, climate change, color change or changes in turbidity. The instrument design is virtually maintenance-free, and the self-cleaning capability of the sensor prevents deviations caused by air bubbles and suspended solids particulate. It is powered by a 24 VDC/6W power supply and offers fully integrated 4-20 mA and RS-485 Modbus output signals for connection to any controller, PLC or DCS network. When clean, the unique Pyxis sensor design offers a stability of <0.1NTU for up to 1-year without calibration. Additionally, this sensor platform can be accessed via the MA-CR Bluetooth/USB adapter for local display, diagnostics, auto-wiper programming, sensor cleaning and calibration when using the uPyxis APP for mobile or desktop devices. The LT-63X series sensor is ideal for use in raw water, surface water, storm water, process water and discharged water applications.

Features

  • Resolution as low as 0.5NTU
  • Built-In Transmitter without Pre-Amplifier or Meter Head
  • Combination 4-20mA isolated signal and RS-485 Modbus (RTU) Output
  • Simple Wireless calibration using uPyxis Mobile or Desktop APPs and MA-CR Bluetooth Adapter
  • Supports Self-Cleaning of Sensor lens for Dirty Water Applications
  • Optional Calibration with Pyxis Lab® formazine calibration standards or Field Water Samples
  • 3/4inch MNPT Threaded for Fixed Submersion
  • Inline Installation with the ST-008 Tee Assembly

Specifications

Key technical details

Item LT-631 LT-632 LT-633
Part Number 53249 53250 10002
Parameter Turbidity Turbidity Turbidity
Measurement Range 0.00–500.00 NTU 0.00–1,000.00 NTU 0.00–4,000.00 NTU
Unit of Measure NTU (Nephelometric Turbidity Unit)
Lower Detection Limit 0.5 NTU
Precision <100: ±2 NTU or 2% of value, >100: ±10% of reading
Accuracy ±2 NTU or 3% of the value
Resolution 0.1 NTU
Response Time T95 < 12 seconds
Calibration Method Field tested process sample or formazin calibration standard
Dual Wavelengths Dual InfraRed Light Sources – ISO-7027 Compliant
Method Scattering
Power Supply 22–26VDC, 6W
Operating Temperature 32–122°F (0–50°C)
Storage Temperature -7–60°C (20–140°F)
Outputs Isolated 4–20mA Analog Output and Isolated RS-485 Modbus Digital Output
Installation Submersed fixed conduit ¾ inch, hoisting chain, or inline using ST-008 Tee
Sensor Distance Install From bottom of vessel (>15cm) / From side of vessel (>10cm)
Material 316L Stainless Steel Body and Wiper Arm, PTFE Wiper Blade
Weight 1,530g (3.3lbs)
Operational Pressure 45psi (3.5Bar)
Rating IP-68 fully dustproof and waterproof
Regulation CE / RoHS
Dimensions 254mm L, 57mm W, 57mm H
Cable Length 33ft (10m) IP-67 8PIN Adapter, 4.9ft (1.5m) Flying Lead IP-67 8PIN Adapter

Support

Manuals, data sheets and reference documents

PDF LT-63X Data Sheet Open support document PDF LT-63X Series Turbidity Sensor Operation Manual -Ver1.03 Open support document
