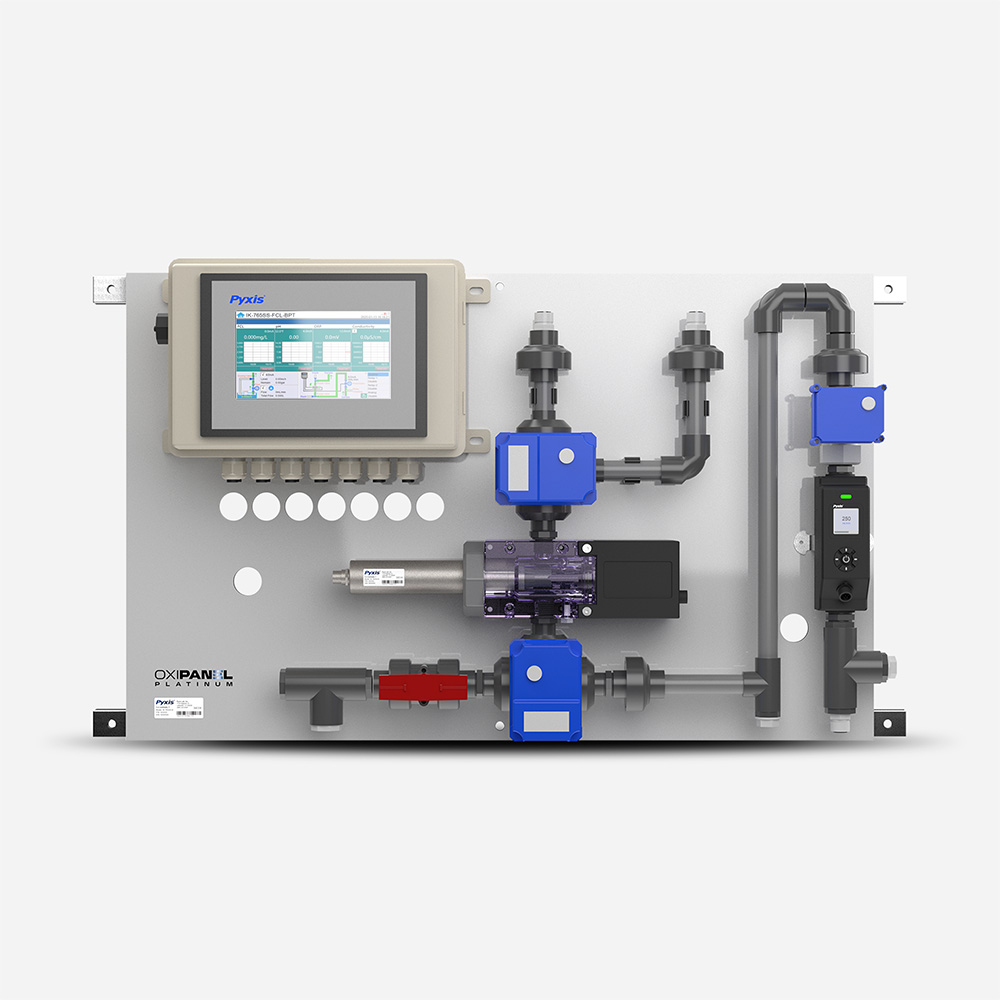

The OXIPANEL Platinum IK-766-BPT series is a preformatted, in-line, multi-parameter analyzer built for the toughest water. Each panel integrates a mechanical brushing reservoir, ultrasonic flow control, auto fresh-water flush, and detergent feed relays, delivering a true Turn-Key monitoring solution for cooling water, food and industrial process water, raw water, and treated wastewater effluent. Every system is provided pre-plumbed and factory-configured for rapid startup and consis-tent performance including the Pyxis UC-80-PLUS color touch display/data-logging terminal plus the Pyxis FS-100 ultra-sonic flow meter with regulating valve.

At its core, the OXIPANEL Platinum uses ST-766SS-Series smart sensors to provide highly accurate, repeatable, real-time measurement of multiple oxidizer species and pH, ORP, conductivity, and temperature, with automatic temperature and pH compensation to keep readings on-spec under real operating conditions. The IK-766-BPT platform is available in eight sensor formats to match your chemistry: Free Chlorine (FCL), Total Chlorine (TCL), Free + Total Chlorine (TFCL), Bromine (Br), Chlorine Dioxide (ClO₂), Monochloramine (NCL), Peracetic Acid (PAA), and Chlorine + Sulfite (DCL).

For contaminated and variable streams, the OXIPANEL Platinum adds a fresh-water flush line input with a 3-way motor-ized valve for user-programmed auto-flush, 110VAC detergent feed relays, and the FR-306-PLUS clear-chamber mechani-cal brush flow assembly to maintain optimum sensor electrode cleanliness in waters laden with food byproduct, oil, line-lube, grease, paper fines, and other foulants. The rugged flow-path design and self-cleaning/anti-fouling features keep sensors free of fouling, delivering stable measurements, longer maintenance intervals, and minimal downtime where conventional membrane amperometric or wet-chemistry analyzers quickly fail.
