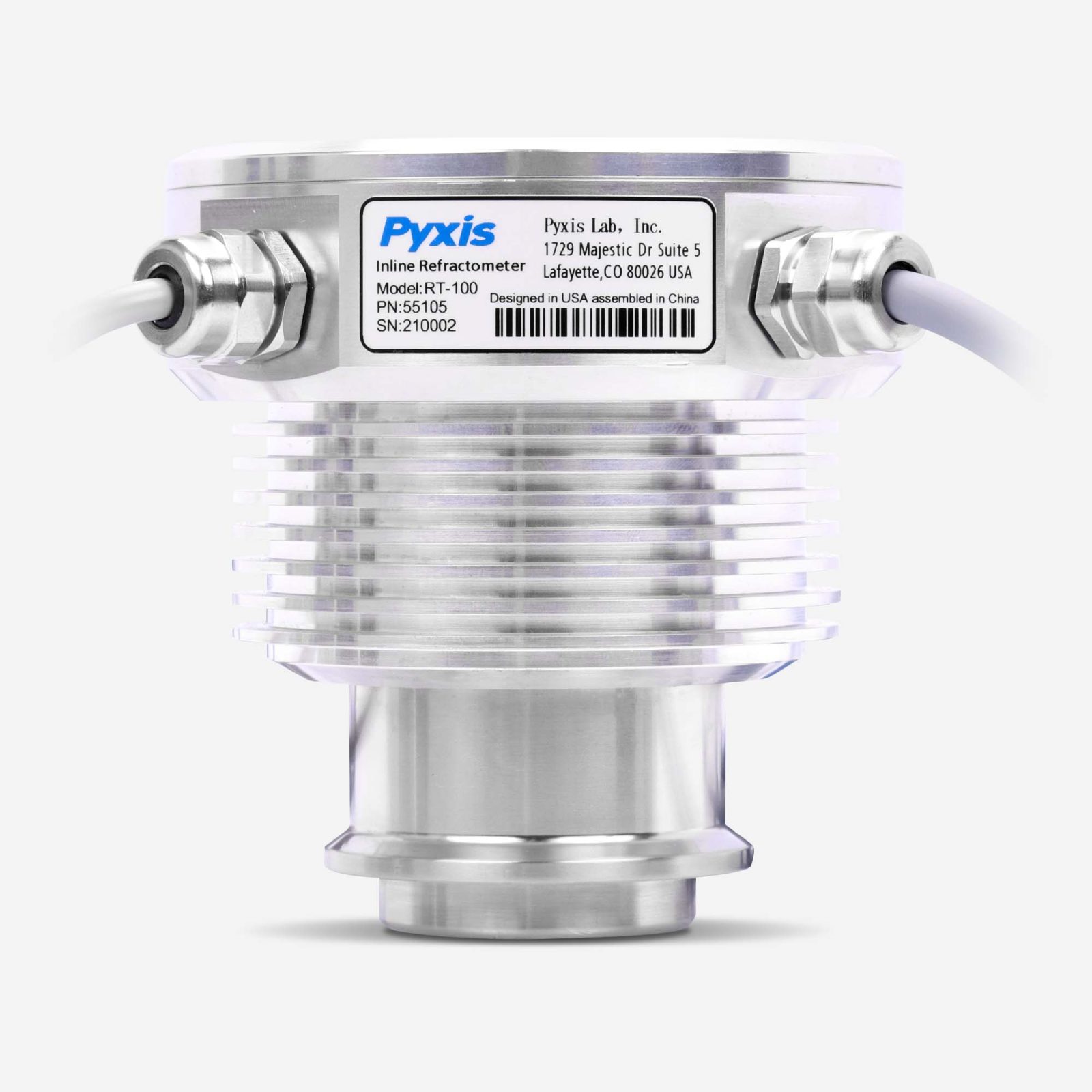

The RT-100 Prism is a very robust, digital sensor and is capable of operating in contaminated fluid samples. It is important however to note that users should take all precautions to mitigate and filter suspended solids from the sample stream prior to the sensor to avoid tenacious deposit build-up on the sensor eye. In highly fouled applications, Pyxis recommends users conduct sensor eye cleaning on a regular basis per the manual guidelines. Pyxis Lab is also developing will be launching an automated sensor cleaning accessory for installation into the Tri-Clamp Flow Cell assembly as an optional accessory in the near future.

Typical Applications

• Refractive Index Direct Read for Process Applications
• Mono-Ethylene Glycol Closed Loop System Monitoring
• Mono-Propylene Glycol Closed Loop System Monitoring
• BRIX/Sugar Concentration Process Applications
• Advanced Low Viscosity Fluid Heat Transfer Fluid
• Specific Gravity Determination via Refractive Index

Features

• 4–20mA Output of Sample Temperature & the Unit of Display selected via the Screen Interface
• RS-485 Modbus RTU Output of Temperature, Refractive Index and Other Diagnosis Parameters
• Built-In Temperature Dependent Equations %BRIX, %MPG, %MEG and %ALV

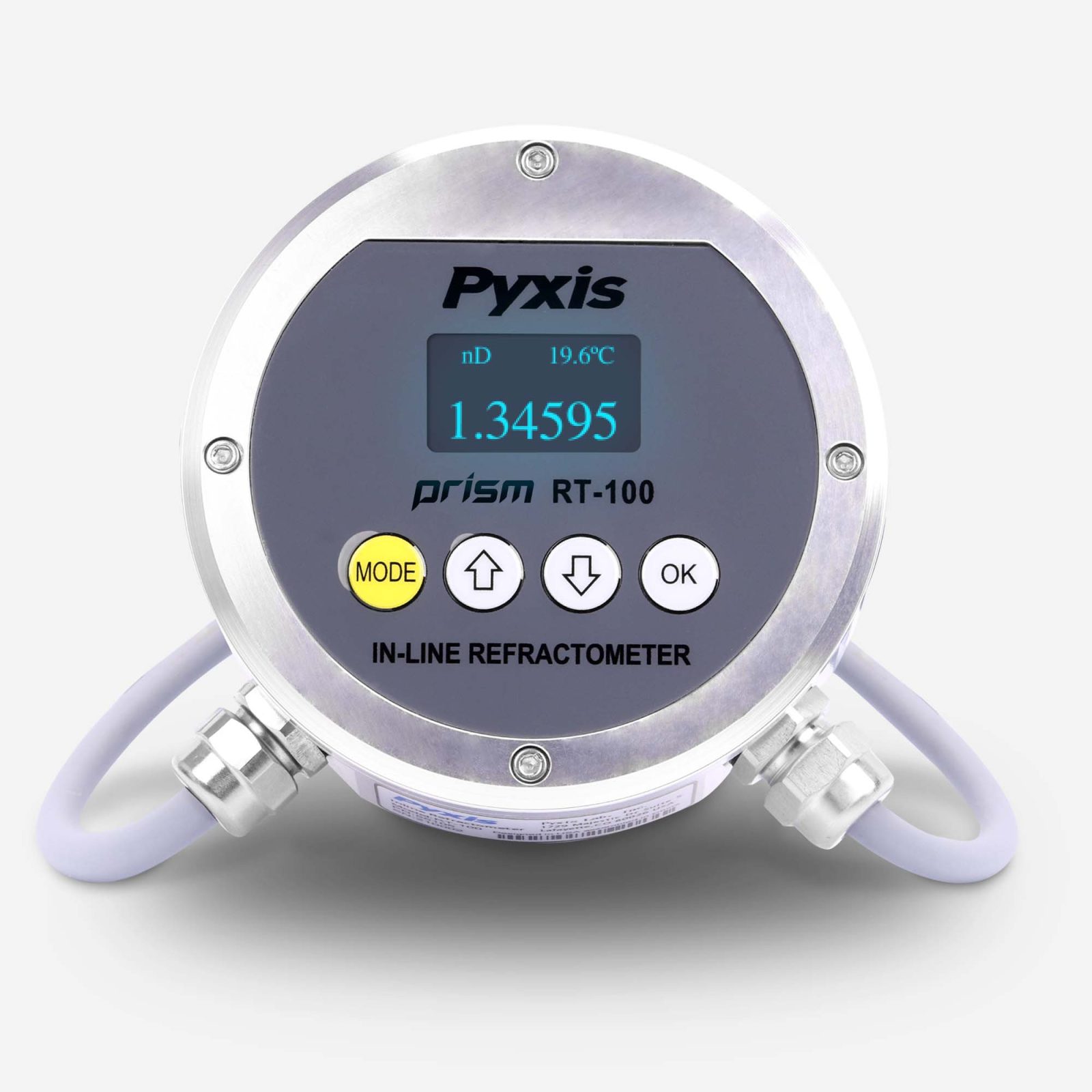

• Local Display and Push-Button Interface
• Optional 110VAC–24VDC Wall Outlet Powered for Independent Operation without a Controller
• Built-In Historical Data Log up to 56 Days of Storage at 1 Reading per minute via uPyxis®
• Bluetooth® Enabled when used with the MA-CR Bluetooth® Adapter
• Sturdy 316L Stainless Steel Construction and Suitable for Harsh Application Environments

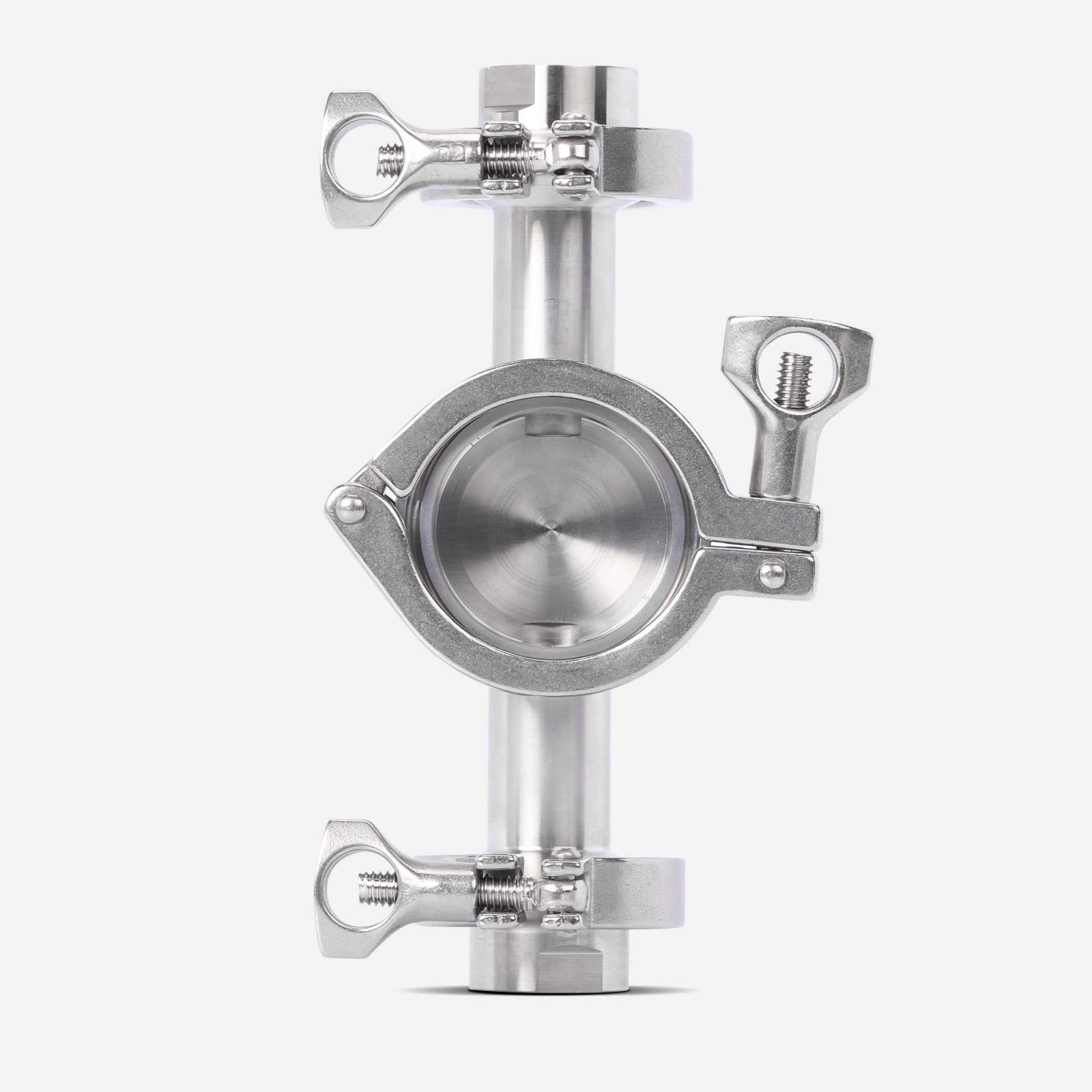

• Convenient Stainless Steel Tri-Clamp Flow Assembly with 3/4inch NPT Flange
• Easy Installation and Removal for Cleaning & Maintenance – NO TOOLS NEEDED
