ST-765SS Series Oxidizer + pH Sensors

Configurations

Available analyzer or sensor options

Sensor Type: ST-765SS-TCL (Total Chlorine)

$1,983.00

53616

Inline Self-Compensating, Bare-Gold Total Chlorine + pH Sensor with FR-50 Flow Reservoir (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin)

Sensor Type: ST-765SS-CLO (ClO2)

$2,356.00

53608

Inline self-compensating, bare-gold Chlorine Dioxide + pH Sensor with FR-50 Flow Reservoir (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin)

Sensor Type: ST-765SS-Br (Bromine)

$1,983.00

59643

Inline Self-Compensating, Bare-Gold Bromine + pH Sensor (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin) NO FLOW RESERVOIR INCLUDED

Sensor Type: ST-765SS-FCL (Free Chlorine)

$2,356.00

53607

Inline Self-Compensating, Bare-Gold Free Chlorine + pH Sensor with FR-50 Flow Reservoir (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin)

Sensor Type: ST-765SS-SO3 (Sulfite)

$2,312.00

53624

Inline Self-Compensating, Bare-Gold Sulfite + pH Sensor (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin) NO FLOW RESERVOIR INCLUDED

Sensor Type: ST-765SS-O3 (Ozone)

$2,312.00

53614

Inline Self-Compensating, Bare-Gold Ozone + pH Sensor (0-2ppm | 2x 4-20mA | RS-485 | 8-Pin) NO FLOW RESERVOIR INCLUDED

Sensor Type: ST-765SS-PAA (Peroxyacetic Acid)

$1,983.00

53610

Inline Self-Compensating, Bare-Gold PAA + pH Sensor with FR-50 Flow Reservoir (0-100ppm | 2x 4-20mA | RS-485 | 8-Pin)

Sensor Type: ST-765SS-H2O2 (Hydrogen Peroxide)

$1,983.00

53612

Inline Self-Compensating, Bare-Gold H2O2 + pH Sensor with FR-50 Flow Reservoir (0-200ppm | 2x 4-20mA | RS-485 | 8-Pin)

Sensor Type: ST-765SS-DCL (Free Chlorine + Sulfite)

$2,549.00

58444

Inline Self-Compensating, Bare-Gold Free Chlorine + Sulfite + pH Sensor (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin) NO FLOW RESERVOIR INCLUDED

Sensor Type: ST-765SS-NCL (Monochloramine)

$1,983.00

53623

Inline Self-Compensating, Bare-Gold Monochloramine + pH Sensor (0-5ppm | 2x 4-20mA | RS-485 | 8-Pin) NO FLOW RESERVOIR INCLUDED

Sensor Type: ST-765SS-DBNPA (DBNPA)

$1,983.00

54267

Inline Self-Compensating, Bare-Gold DBNPA + pH Sensor with FR-50 Flow Reservoir (0-20ppm | 2x 4-20mA | RS-485 | 8-Pin)

Overview

What this product is built to monitor

EPA Logo

Description

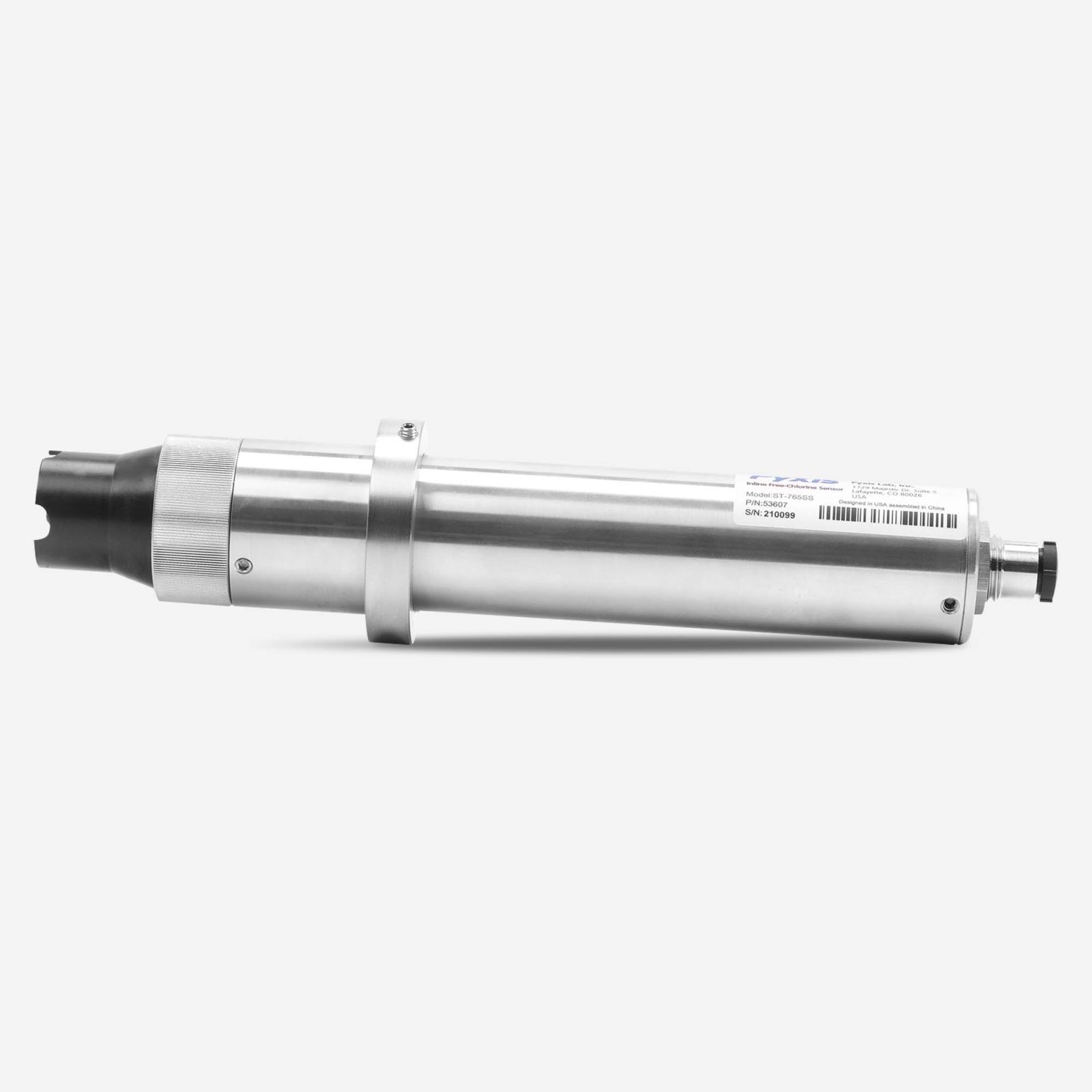

The ST-765SS Series are stainless steel multi-parameter membrane-less sensors. Based on unique electrochemical principles to determine an oxidizer and pH content in water. These sensors incorporate Pyxis Lab® advanced technology in the field of bare-gold electrochemical detection. The ST-765SS Series integrates an oxidizer measurement (Free Chlorine, Chlorine Dioxide, Sulfite, Bromine, Monochloramine, etc.) plus pH measurement. Both can perform temperature and pH compensation. For the measurement of the oxidizer based on the conditions present in the application of use. This unique internal compensation results in a highly accurate oxidizer measurement. Consistent with DPD wet chemistry methodology as high as a pH of 9.0 and is compliant with USEPA-334.0 & ISO-7393 guidelines.

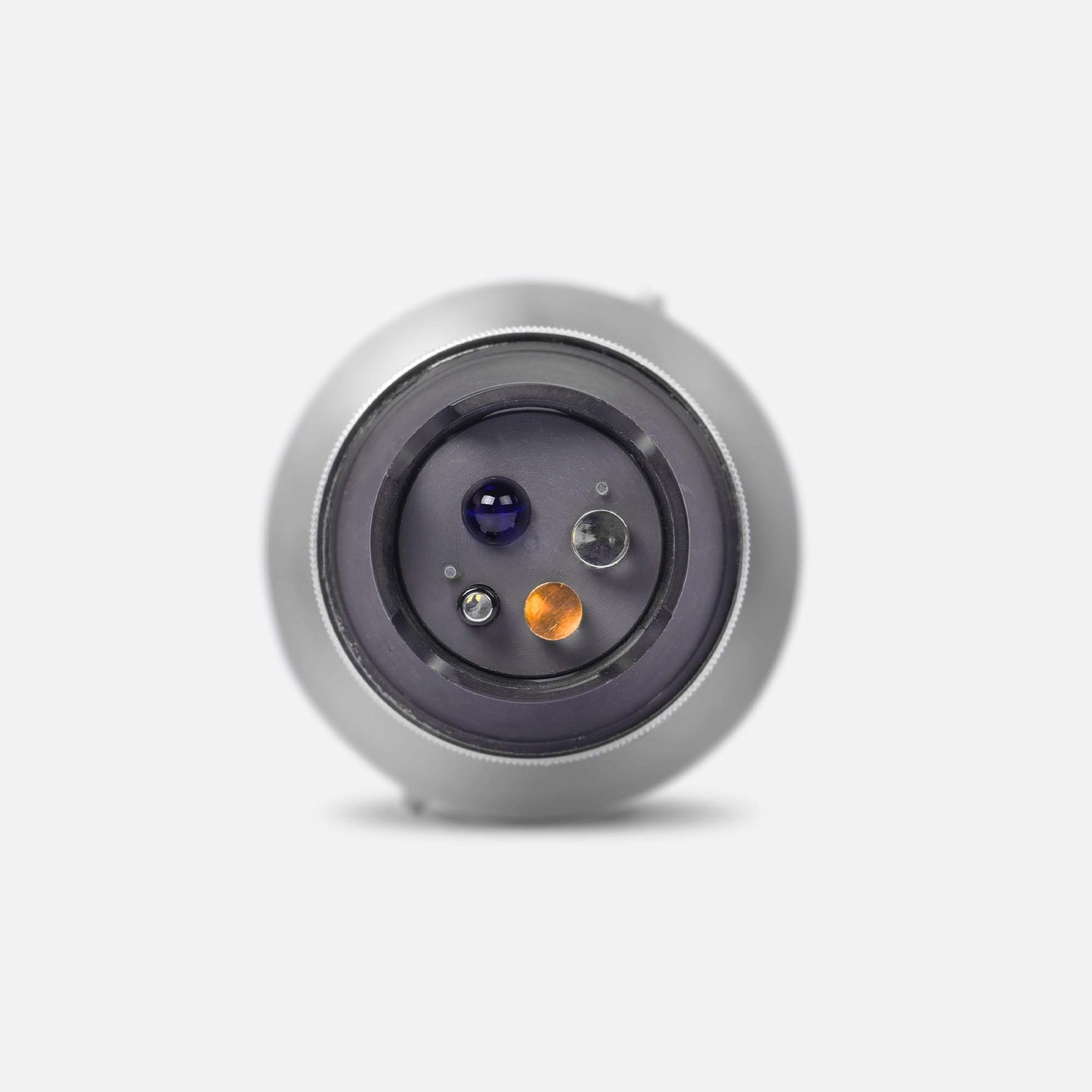

The ST-765SS Series sensors offer a replaceable, front-loading reference electrode assembly. Independently developed by Pyxis Lab®, eliminating the shortcomings associated with membranes and gel replacement while offering reduced polarization time on startup, offering an electrode life span potential of up to 2 years. The flat front-end is platform less prone to contamination or fouling and is easy to clean. The ST-765SS Series sensor body is composed of 304 Stainless Steel and is well suited for aggressive environments.

Details

The ST-765SS Series offer (2) 4-20mA and RS-485 Modbus outputs and is Bluetooth® 5.0 enabled when used with the MA-CR Bluetooth® adapter. The world’s first four-electrode composite sensor that provides three measured parameters including Free Chlorine or Chlorine Dioxide, pH and Temperature with one sensor RS-485 Modbus output. The ST-765SS is the best choice for potable water, secondary water supply, domestic water, decorative water and other clean water applications.

Features

  • Real-Time pH + Oxidizer (0-5ppm) Detection
  • Dual 4-20mA Outputs (Oxidizer+ pH) and RS-485
  • Bluetooth® Enabled when used with MA-CR Adapter Wireless for uPyxis Calibration
  • Integrated RTD & pH Compensation to pH 9.0 of the Oxidizer Value
  • Replaceable EH-765 Reference Electrode Assemble for Simple Maintenance

Specifications

Key technical details

Item ST-765SS-FCL/CLO
Part Number ST-765SS-FCL 53607
ST-765SS-CLO 53608
Sensor Body Material 304 Stainless Steel
Oxidizer Range ST-765SS-FCL 0.00-5.00ppm FCl2 (auto-range)
ST-765SS-CLO 0.00-5.00ppm ClO2 (auto-range)
Oxidizer Precision ±0.01mg/L or 1% of the Value with pH Compensation up to 9.0
pH Range 0-14
pH Precision ±0.01
Sample Inlet Pressure 7.25-30psi (0.05-0.2MPa)
Power Supply 22-26VDC, Power Consumption – 2W
Storage Temperature -7-60 °C (20-140 °F)
Outputs Dual Isolated 4-20mA Analog
Isolated RS-485 Digital
Dimension (LxD) 8.3in (210.8mm) L x 1.4in (35.6mm) D
Weight 530g (1.16lbs)
MAX Sensor Pressure 100psi (6.9Bar)
Operating Temperature 4-40 °C (40-140 °F)
Wet Material UPVC
Regulation CE / RoHS
Compliance EPA 334.0 / ISO 7393
Cables Included MA-4.9CR Cable (8-Pin Adapters – 4.9ft)
MA-1.5CR Cable (8-Pin Adapter/Flying Leads – 1.5ft)
Typical Electrode Service Life 2 Years
