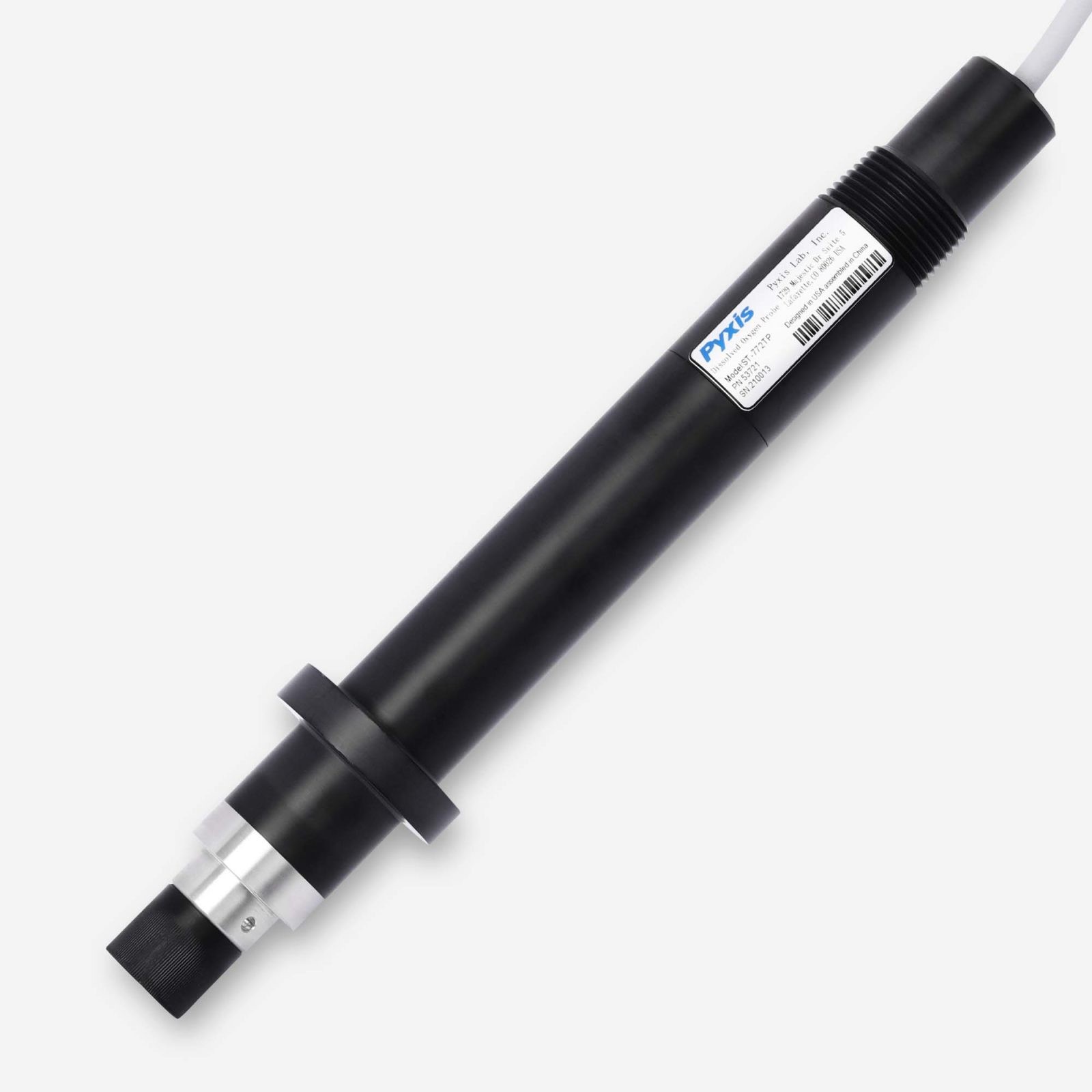

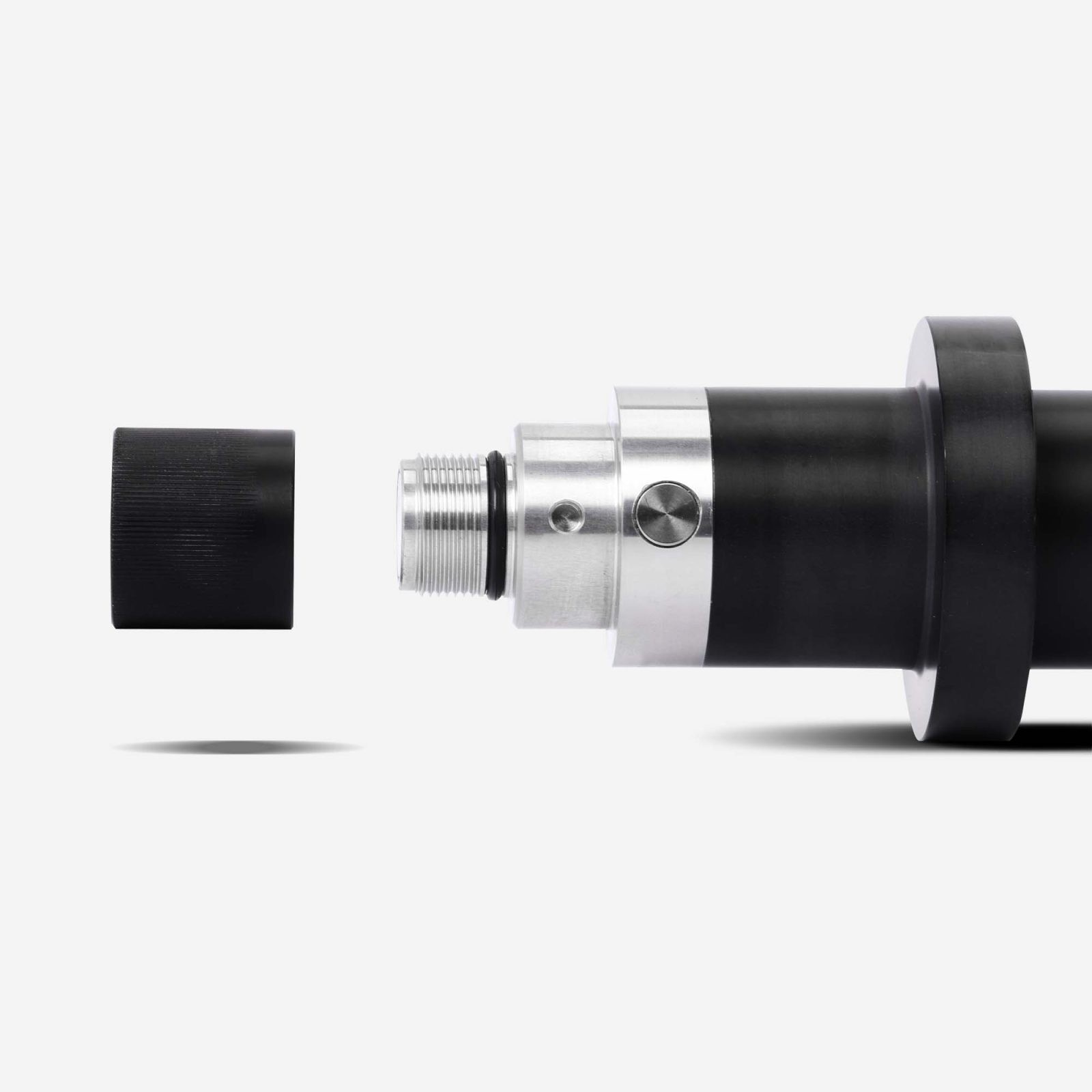

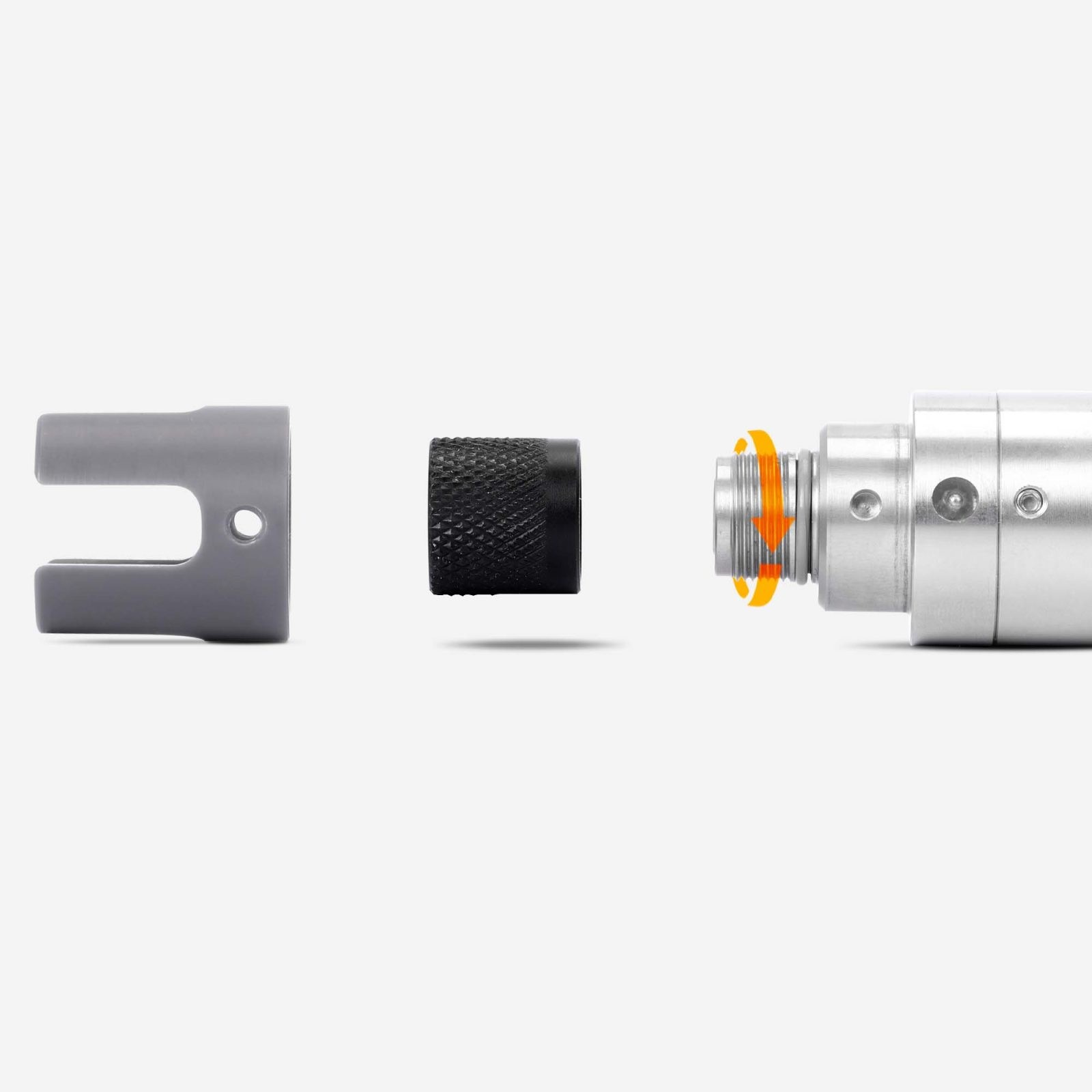

The Pyxis ST-772 Series optical luminescent dissolved oxygen (DO) sensor is based on the principle of 'fluorescence quenching' to determine the dissolved oxygen content in water. It incorporates Pyxis' advanced technology in the field of fluorescence detection and uses Blue/Red light detection with excitation and reference light sources, offering a wide detection range and very low detection limit. The sensor also integrates temperature and pressure sensors, which can perform temperature and pressure compensation for the measurement of dissolved oxygen based on ambient environmental conditions present in the application of use. The ST-772 offers an easily replaceable, front loading DO membrane cap that has been independently developed by Pyxis Lab, with a typical service life of up to two years. This unique DO membrane cap design incorporates a black microporous PTFE membrane material designed to provide extreme scratch resistance, extended life span and simple replacement. The flat front-end design of the ST-772 makes this platform less prone to contamination or fouling and is very easy to clean. The sensor body is composed of 304 stainless steel or CPVC and is well suited for agressive industrial applications. The ST-772T (304SS) and ST-772T-P (CPVC) models are offered for inline or bypass flow installations. The ST-772 series offers both 4-20mA and RS-485 Modbus outputs and is Bluetooth® enabled when used in conjunction with the MA-CR Bluetooth® Adapter.

Features

• 0.004–20mg/L Measurement Range
• No Membrane Replacement or Electrolyte Replacement
• Simple DO Cartridge Replacement every 2 Years
• Built-In Temperature & Pressure Sensor with Automatic Compensation
• Accurate and Stable Measurement with Ultra-Low Drift Requiring No Calibration for up to 2 Years
• Built-In Transmitter without Preamplifier or Meter Head
• Dual Outputs both 4–20mA Isolated Signal & RS-485 Modbus
• Wireless Calibration, Diagnostics, Data Trend via uPyxis® app when used with MA-CR Bluetooth® Adapter
• Slope Calibration with Air or Air Saturated Water / Zero Calibrate with 5% Sulfite Solution or Nitrogen Gas
• Submersible (ST-772 or ST-772P) or Inline Pipe Tee (ST-772T or ST-772T-P) Installation Versions Available

Typical Applications

• Activated Sludge
• Aeration Basin
• Nutrient Removal
• Wastewater
• Sewage Processing
• Chemical/Process Water Applications
• Domestic/Drinking Water Applications
• Filtration Applications
• Aquaculture
• Agriculture
• Compliant USEPA 40CFR Part 136.3 as an Approved Method for Measurement of Dissolved Oxygen in Wastewater, Drinking Water and Direct Discharge
