Overview

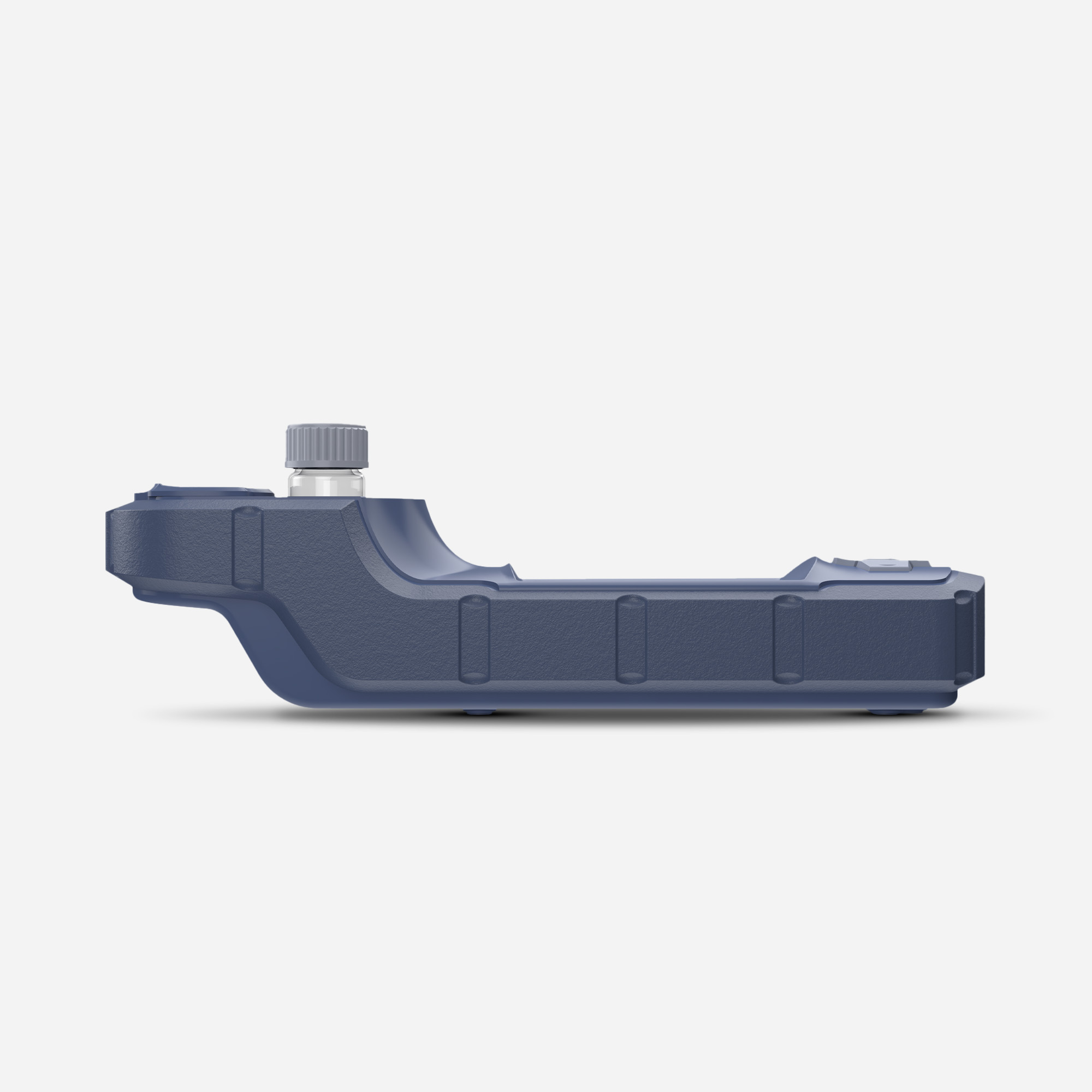

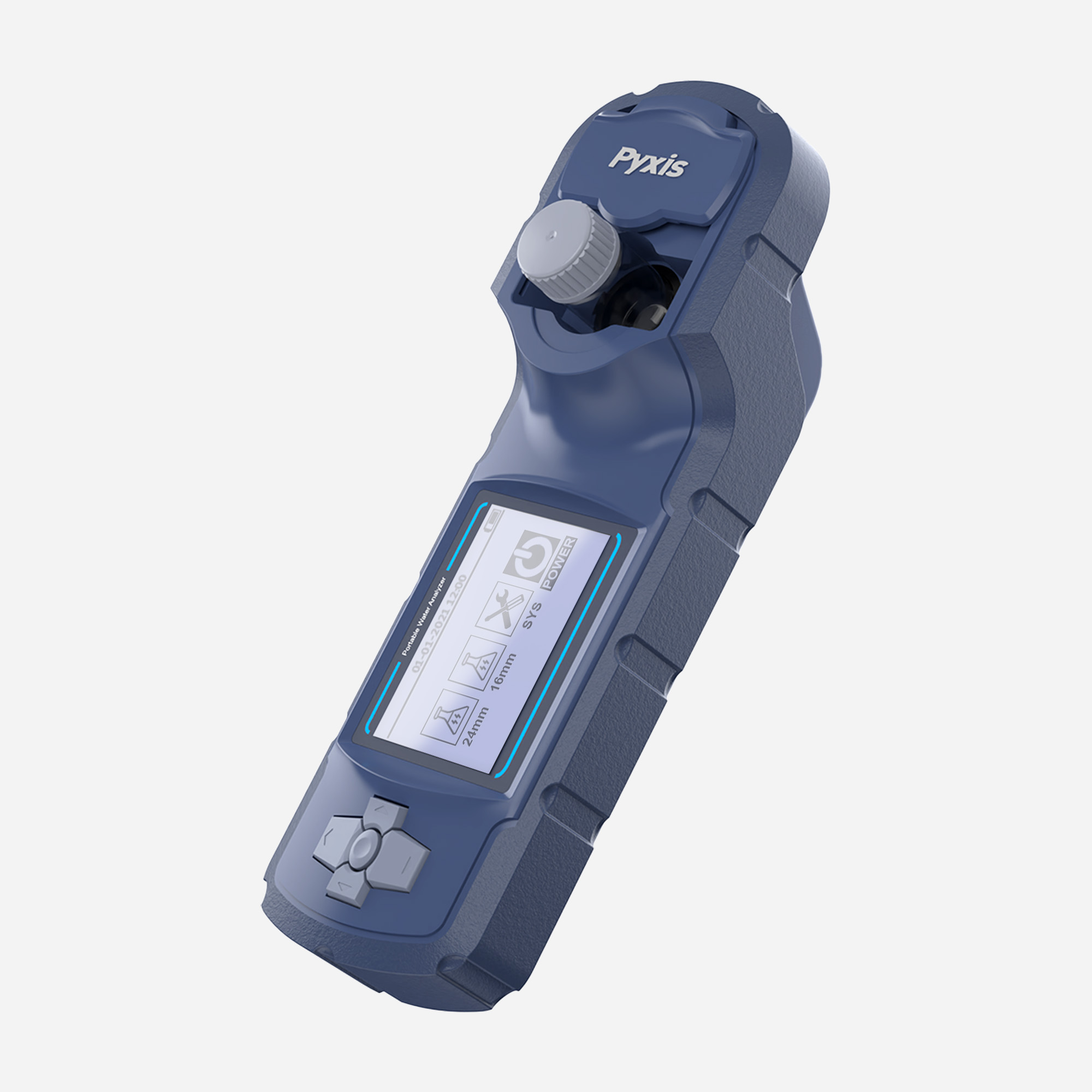

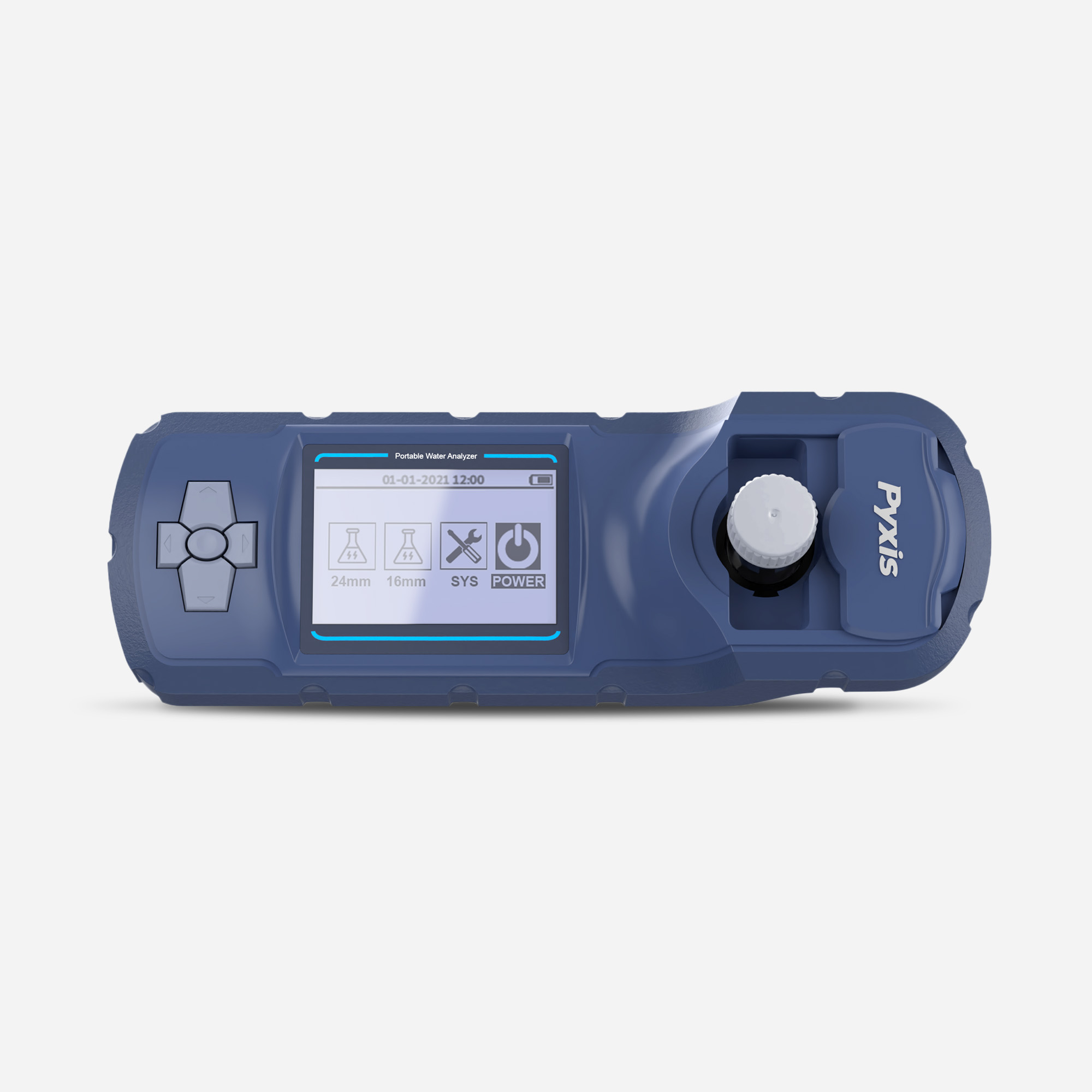

The Pyxis Lab® HM-900 is a handheld portable fluorometer that measures the concentration of multiple oils in water. So, utilizing an LED sourced UV Fluorescence methodology at 365nm wavelength and 410nm excitation. As well as enabling automatic range selection with dual-channel wavelengths of fluorescence.
Two Extraction Methods
The HM-900 offers measurement of oil content through Hexane Extraction and Pyxis Lab® prepared Non-Toxic / Non-Flammable Solvent. So, this allows for a safer and more convenient measurement, reducing sample preparation steps. Both 24mm and 16mm sample vials may be used with the HM-900.
Pre-Programmed Calibration Curves for Primary Oil Classes
The HM-900 has three default built-in calibration curves for Marine-Offshore Oil, #1 Diesel/Kerosene & Heavy Fuel Oil. In addition, the user may select which of these three formats are desired for final measurement display. Furthermore, users may also create up to 7 customized/user defined calibration curves for the specific oil desired.
Suitable for Direct-Read Method for Dissolved or Emulsified Oil
The HM-900 can be used to directly analyze oil in water content without the need for extraction using UV fluorescence methodology. Therefore, this method is commonly utilized for samples containing dissolved or lightly emulsified oil.
Secondary Standard for Rapid Calibration
Preparation of a true oil in water calibration standard is both time consuming and subject to error. As such, the HM-900 can also be calibrated using Pyxis synthetic OIW (oil in water) secondary standards. Finally, this approach enables users to utilize a synthetic oil in water standard for rapid device calibration, improved accuracy and extended shelf life of the calibration solution.
Specifications
| Item | HM-900 |
| Part Number | 52201 |
| Power Supply | (4) Alkaline Batteries |
| Wavelength | 365/470 (ex/em) and 470/650 (ex/em) |
| Detection Limit | 0.1ppm (Marine-Offshore Oil) |
| Range | 0.1-1,000ppm, Auto-Channel Switch |
| Battery Life | 2 Months |
| Display | 192x128LCD, Visible Under Direct Sunlight |
| Weight | 1.1lbs (510g) |
| Dimension | L 265mm W 88mm H62mm |
| Temperature | Working: 14-122 °F (-10-50 °C) Storage: -4-158 °F (-20-70 °C) |
| Enclosure Rating | IP65 |
| Regulation | CE / RoHS |
